Model Whirlpool B9457^0 BUILT-IN GAS OVEN – Common Parts & Diagrams
02 - CONTROL PANEL
07 - WIRING DIAGRAM

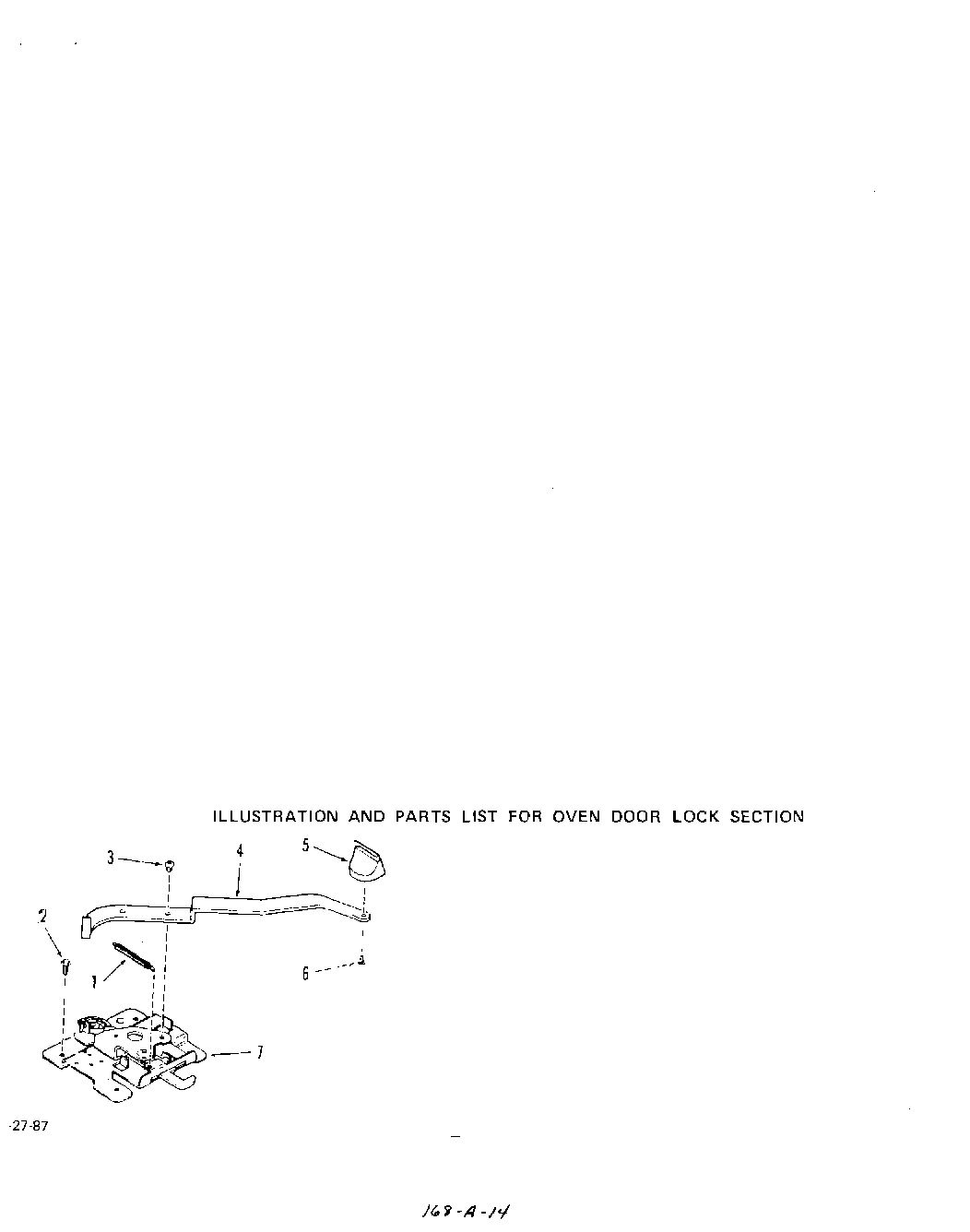

03 - OVEN DOOR LOCK

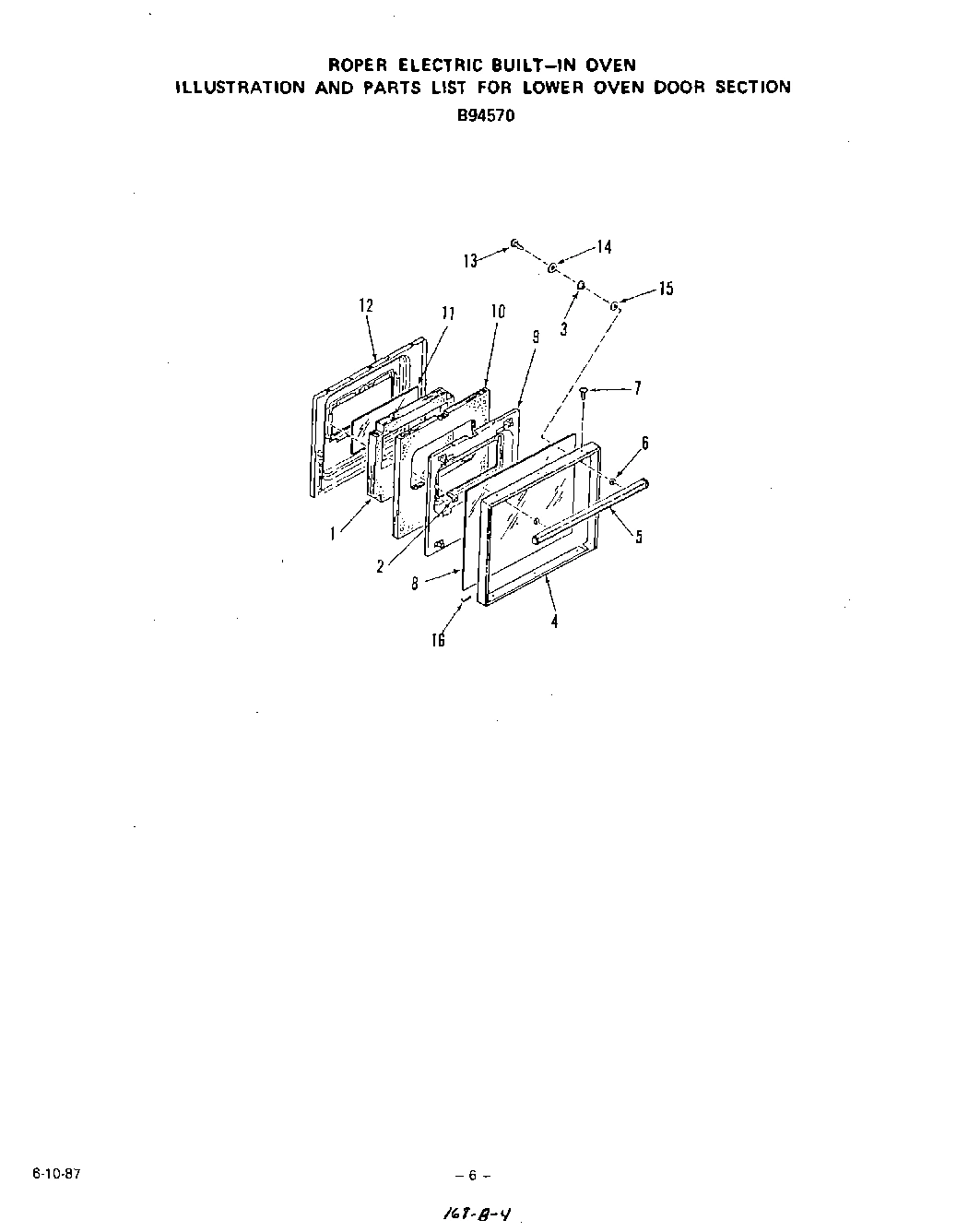

06 - LOWER OVEN DOOR

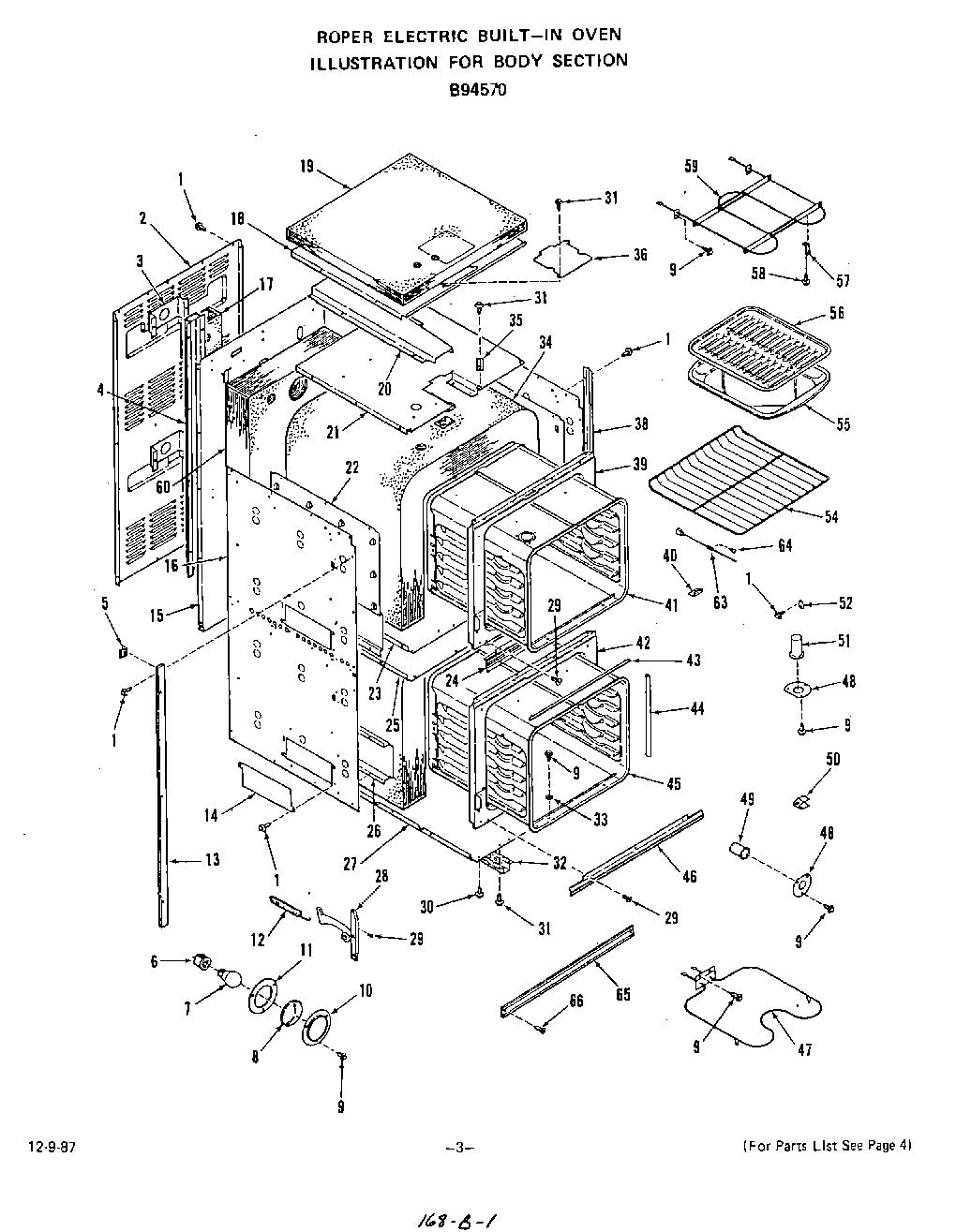

04 - BODY

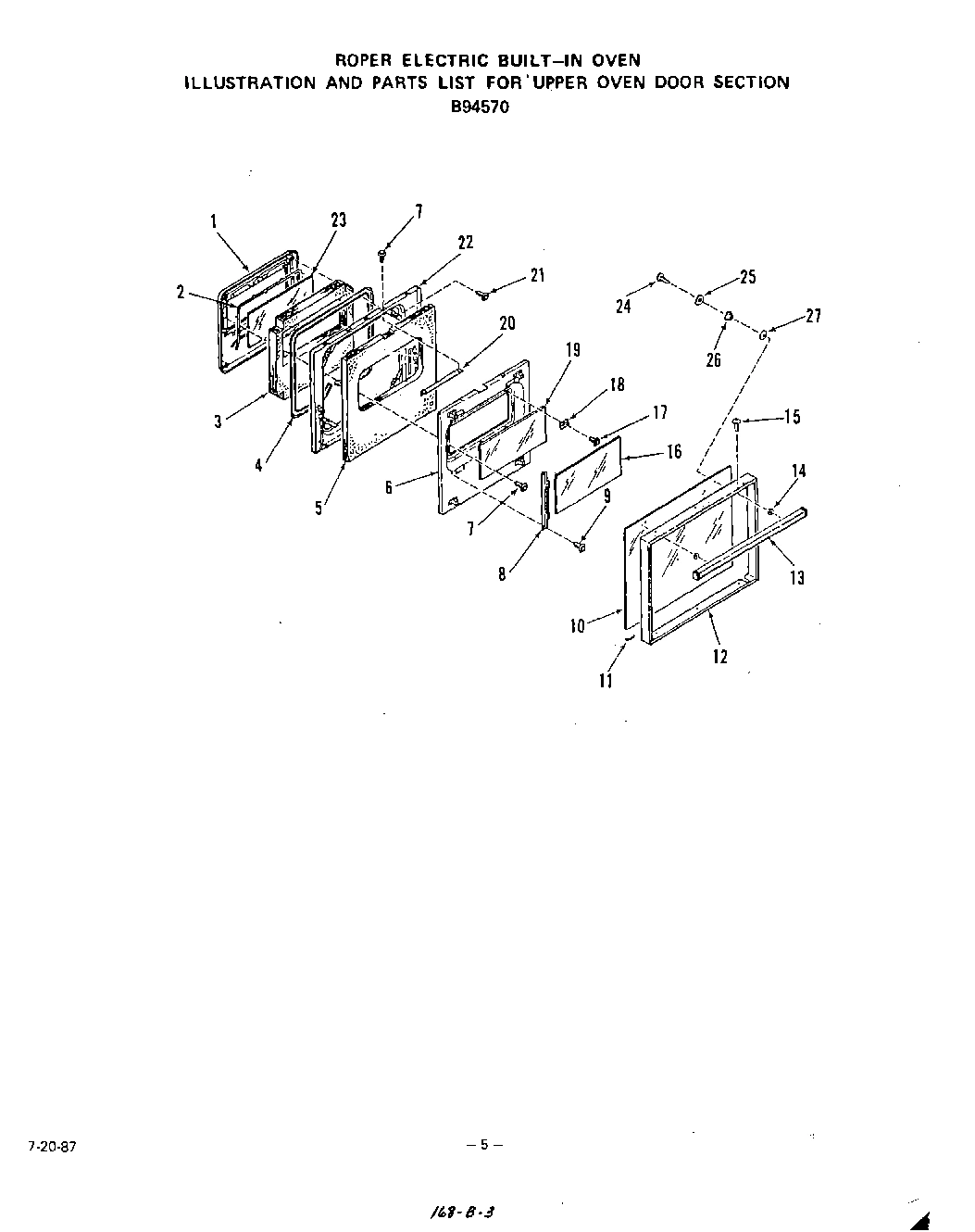

05 - UPPER OVEN DOOR
Common parts from model Whirlpool B9457^0 BUILT-IN GAS OVEN
1
Spring WPL 313075 Contact Us For Availability
1
Plug-Oven Door Lining WPL 338022 Contact Us For Availability
2
Cabinet Back WPL 328090 Contact Us For Availability
2
Door Seal WPL 302935 Contact Us For Availability
3
Relay Board WPL 335245 Contact Us For Availability
3
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
3
Insulation-Oven Door Plug WPL 328107 Contact Us For Availability
3
Insulation Retainer-Oven Light (Up. & Lo. Ove WPL 323630 Contact Us For Availability
4
Lock Handle WPL 337409 Contact Us For Availability
4
Rear Oven Vent Box WPL 328148 Contact Us For Availability
4
Gasket-Oven Door WPL 328123 Contact Us For Availability
5
Top Cover-Control Housing WPL 337414 Contact Us For Availability
5
Knob-Lock Handle WPL 335738 Contact Us For Availability
5
Insulation-Oven Door Lining WPL 328106 Contact Us For Availability
5
Spacer (6 Req.) WPL 328077 Contact Us For Availability
6
Panel Control WPL 336279 Contact Us For Availability
6
Clip-Knob WPL 335692 Contact Us For Availability
6
Retainer-Oven Door Insulation WPL 336595 Contact Us For Availability
6
Holder-Oven Light Bulb (Up. & Lo. Oven) WPL 87883 Contact Us For Availability
7
Bracket Control Panel WPL 336563 Contact Us For Availability
7
Oven Door Lock Assm. WPL 335333 Contact Us For Availability
7
Oven Light Bulb (Up. & Lo. Oven) WPL 111257 Contact Us For Availability
8
Oven Light Lens (Up. Oven) WPL 114989 Contact Us For Availability
8
Retainer-Oven Door Glass (Lt. or Rt.) WPL 328064 Contact Us For Availability
9
Spacer PCB WPL 311469 Contact Us For Availability
9
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
9
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
10
Clock WPL 335448 Contact Us For Availability
10
Oven Door Glass-Outer WPL 336208 Contact Us For Availability
10
Lens Retainer-Oven Light (Up. Oven) WPL 229372 Contact Us For Availability
11
Thermostat WPL 320938 Contact Us For Availability
11
Cushion WPL 112370 Contact Us For Availability
11
Gasket-Oven Light (Up. Oven) WPL 229371 Contact Us For Availability
12
Nut (For Key 14) WPL 110340 Contact Us For Availability
12
Frame-Oven Door WPL 336210 Contact Us For Availability
12
Lining-Oven Door WPL 331686 Contact Us For Availability
12
Lower Oven WPL 328961 Contact Us For Availability
12
Upper Oven WPL 328962 Contact Us For Availability
12
Spring-Oven Door (Lt. or Rt.) WPL ARI20652A7 Contact Us For Availability
13
Plate (For Key 14) WPL 294983 Contact Us For Availability
13
Handle-Oven Door WPL 336203 Contact Us For Availability
13
Side Trim (Lt. or Rt.) WPL 336248 Contact Us For Availability
14
Harness Conduit Asm. WPL 336305 Contact Us For Availability
14
Spacer, Door Handle WPL 107158 Contact Us For Availability
14
Cover Plate (4 Req.) WPL 328112 Contact Us For Availability
15
Wire Cover WPL 327990 Contact Us For Availability
15
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
15
Main Back WPL 336258 Contact Us For Availability
16
Main WPL 336311 Contact Us For Availability
16
Relay WPL 336313 Contact Us For Availability
16
Sensor WPL 336960 Contact Us For Availability
16
Limiter WPL 338103 Contact Us For Availability
16
Wire Harness WPL ARI20654A6 Contact Us For Availability
16
Cabinet Side-Lt. or Rt. WPL 328085 Contact Us For Availability
16
Oven Door Glass-Intermediate WPL 328046 Contact Us For Availability
17
Screw 10-32x17/32`` WPL 295849 Contact Us For Availability
18
Heat Shield (Lt. or Rt.) WPL 336275 Contact Us For Availability
18
Insulation Retainer-Cabinet Top WPL 333116 Contact Us For Availability
18
Retainer-Door Glass (4 Req) WPL 326009 Contact Us For Availability
19
Oven Door Glass-Center WPL 328045 Contact Us For Availability
19
Insulation-Cabinet Top WPL 336572 Contact Us For Availability
20
Trim Control Panel WPL 337413 Contact Us For Availability
20
Vent Box WPL 336779 Contact Us For Availability
21
Screw 10 - 32 x 3/8`` WPL 102429 Contact Us For Availability
21
Insulation Retainer-Oven Top WPL 327968 Contact Us For Availability
22
Bracket-Micro Switch WPL 335115 Contact Us For Availability
22
Insulation Retainer-Oven Side (Lt. or Rt.) WPL 328089 Contact Us For Availability
22
Lining-Oven Door WPL 331816 Contact Us For Availability
23
Cover Plate Lock WPL 333124 Contact Us For Availability
23
Bottom Insulation Retainer (Up. Oven) WPL 327966 Contact Us For Availability
23
Oven Door Glass-Inner WPL 328043 Contact Us For Availability
24
Cabinet Top WPL 337410 Contact Us For Availability
24
Screw WPL 300864 Contact Us For Availability
24
Center Front Trim WPL 336240 Contact Us For Availability
25
Screw 10 - 32 x 7/16`` WPL 295850 Contact Us For Availability
25
Washer WPL 99279 Contact Us For Availability
25
Insulation Retainer-Oven Top (Lo. Oven) WPL 327963 Contact Us For Availability
26
Screw 6-32x7/8`` WPL 327256 Contact Us For Availability
26
Spacer-Glass WPL 333015 Contact Us For Availability
26
Door Spring Insulation Retainer (Lt. or Rt.) WPL 328071 Contact Us For Availability
27
Micro Switch-Lock WPL 334973 Contact Us For Availability
27
Washer-Fiber WPL 333014 Contact Us For Availability
27
Cabinet Bottom WPL 327948 Contact Us For Availability
28
Right WPL 336511 Contact Us For Availability
28
Left WPL 336512 Contact Us For Availability
28
End Cap WPL ARI20651A1 Contact Us For Availability
28
Left (2 Req) WPL 335599 Contact Us For Availability
28
Right (2 Req) WPL 335600 Contact Us For Availability
28
Hinge WPL ARI20653A3 Contact Us For Availability
29
Light Indicator WPL 331717 Contact Us For Availability
29
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
30
Screw 6-32x.312 WPL 78153 Contact Us For Availability
30
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
31
Screw 10-32x1/2`` WPL 321665 Contact Us For Availability
32
Clock Lens WPL 334898 Contact Us For Availability
32
Bottom Cabinet Channel (Lt. or Rt.) WPL 328042 Contact Us For Availability
33
Clock Knob WPL 339197 Contact Us For Availability
33
Washer WPL 106462 Contact Us For Availability
34
Screw 8-32x.187 WPL 78565 Contact Us For Availability
34
Insulation-Oven Top & Sides (1 Piece) (Up & L WPL 328103 Contact Us For Availability
35
Thermostat Knob WPL 336288 Contact Us For Availability
35
Bracket (2 Req) WPL 313627 Contact Us For Availability
36
Lens-Indicator Light WPL 331705 Contact Us For Availability
36
Cover Plate-Lock WPL 323648 Contact Us For Availability
37
Switch WPL 334649 Contact Us For Availability
38
Screw 10-32x1`` WPL 313190 Contact Us For Availability
38
Raceway WPL 325532 Contact Us For Availability
39
Fan Asm WPL 335558 Contact Us For Availability
39
Front Frame-Up. Oven WPL 336567 Contact Us For Availability
40
Cover- WPL 304835 Contact Us For Availability
41
WPL 336190 WPL 336190 Contact Us For Availability
42
WPL 331663 WPL 331663 Contact Us For Availability
43
WPL 328809 WPL 328809 Contact Us For Availability
44
WPL 329204 WPL 329204 Contact Us For Availability
45
WPL 331647 WPL 331647 Contact Us For Availability
46
WPL 336243 WPL 336243 Contact Us For Availability
47
WPL 328113 WPL 328113 Contact Us For Availability
48
WPL 328303 WPL 328303 Contact Us For Availability
49
WPL 294679 WPL 294679 Contact Us For Availability
50
WPL 291123 WPL 291123 Contact Us For Availability
52
WPL 237762 WPL 237762 Contact Us For Availability
53
WPL 321539 WPL 321539 Contact Us For Availability
55
WPL 331592 WPL 331592 Contact Us For Availability
56
WPL 326297 WPL 326297 Contact Us For Availability
57
WPL 324809 WPL 324809 Contact Us For Availability
58
WPL 69605 WPL 69605 Contact Us For Availability
59
WPL 328115 WPL 328115 Contact Us For Availability
60
WPL 328104 WPL 328104 Contact Us For Availability
63
WPL 334300 WPL 334300 Contact Us For Availability
64
WPL 336152 WPL 336152 Contact Us For Availability
65
WPL 338119 WPL 338119 Contact Us For Availability
66
WPL 336297 WPL 336297 Contact Us For Availability
× ![]()
